pharmaceutical water softening equipment

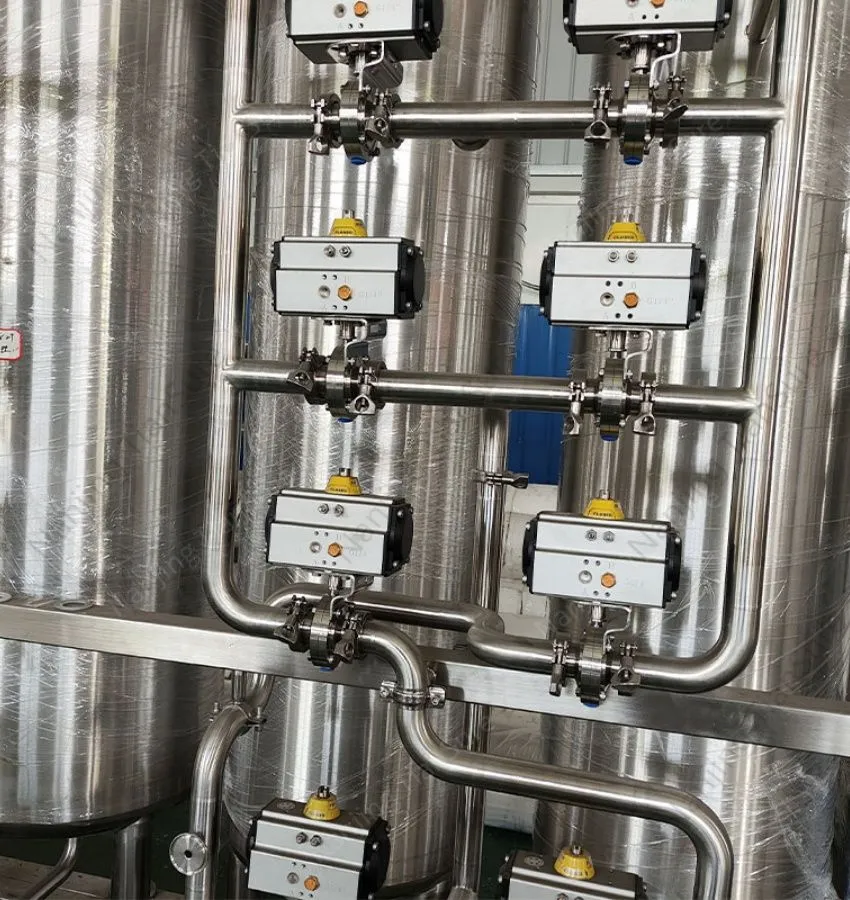

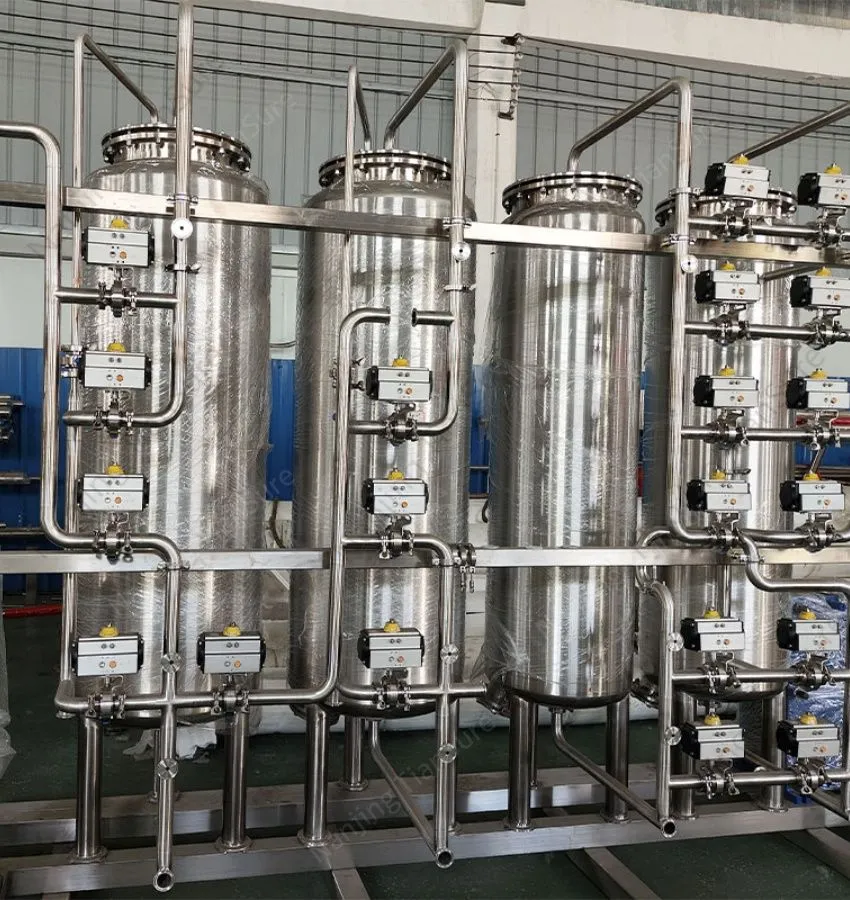

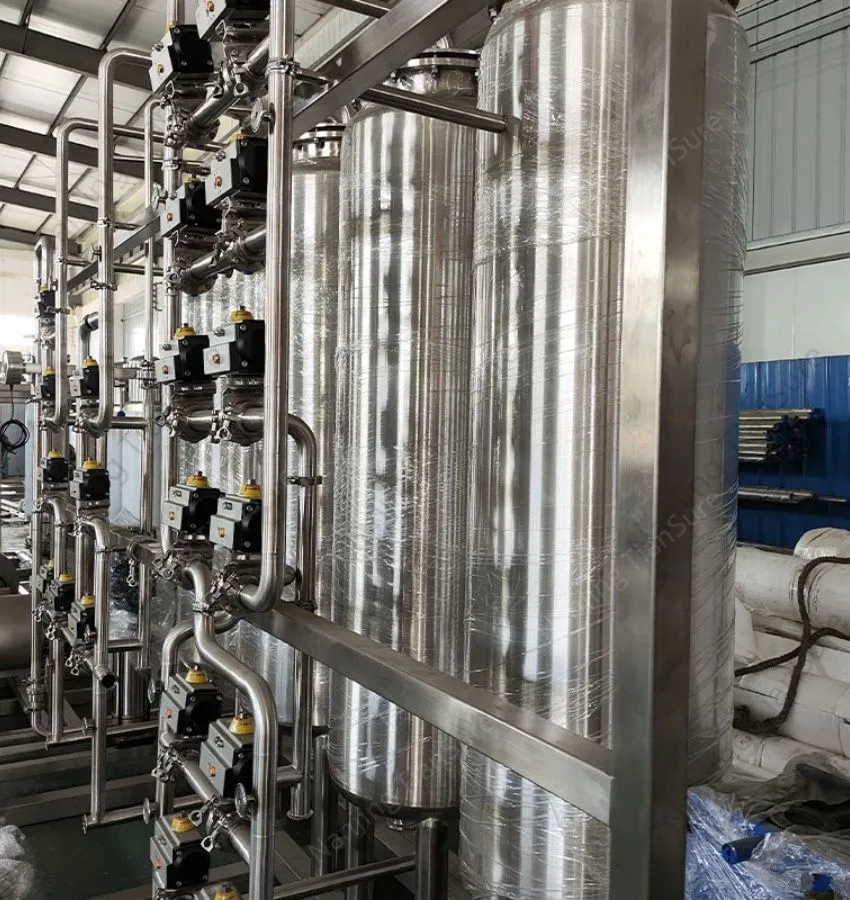

pharmaceutical water softening equipment are the most common type of equipment used in water treatment. Their function is to remove scale-forming calcium and magnesium ions from hard water. In many cases, soluble ions (iron ions) can be removed using softening equipment. A standard softening unit has four main parts: resin column, resin, salt dosing unit, and valve controller. The softening unit resin column contains treated ion exchange resin - small polystyrene particles. This resin particle initially adsorbs sodium ions during the regeneration process. This resin has a much greater affinity for multivalent ions such as calcium and magnesium ions. Therefore, when hard water flows through the resin, calcium and magnesium ions are adsorbed on the resin and desorbed until equilibrium is reached. At this point, the softening unit has completed the exchange of sodium ions with calcium and magnesium ions in the water. During regeneration, NaCl solution is passed through the resin, and the hard ions are replaced by sodium ions. The use of high-concentration salt water weakens this affinity between the resin and the hard ions. This regeneration process can be repeated indefinitely without damaging the resin.

The softener is a simple ion exchange process that addresses the most common form of water contamination: hardness. Regeneration with NaCl is a simple and inexpensive process that is also automatic and does not require harsh chemicals.

pharmaceutical water softening equipment work through a cyclic process of ion adsorption and regeneration, primarily targeting calcium (Ca²⁺) and magnesium (Mg²⁺) ions that cause water hardness. Here’s a simplified breakdown of the principle:

1. Ion Exchange Process (Softening Stage)

Resin Function: The unit contains a resin column filled with ion-exchange resin (e.g., polystyrene beads) pre-loaded with sodium (Na⁺) ions.

Hardness Removal: When hard water flows through the resin, Ca²⁺ and Mg²⁺ ions (multivalent) have a stronger affinity for the resin than Na⁺ (monovalent). The resin adsorbs Ca²⁺/Mg²⁺ and releases Na⁺ into the water, “softening” it by replacing hardness ions with sodium.

Equilibrium Point: The resin becomes saturated with Ca²⁺/Mg²⁺ over time, losing its softening capacity.

2. Regeneration Process (Resin Recharge)

Salt Solution Flush: To restore the resin, a concentrated sodium chloride (NaCl) solution is passed through the column.

Ion Replacement: The high concentration of Na⁺ in the salt water overcomes the resin’s affinity for Ca²⁺/Mg²⁺, forcing these hardness ions off the resin and flushing them out as waste.

Resin Reactivation: The resin is reloaded with Na⁺ ions, ready for the next softening cycle. This process is automatic (controlled by a valve) and repeatable indefinitely.

• Ion Exchange Reaction:
  Resin-Na⁺ + Ca²⁺/Mg²⁺ (water) ↔ Resin-Ca²⁺/Mg²⁺ + Na⁺ (water)

• Regeneration Reaction:
  Resin-Ca²⁺/Mg²⁺ + NaCl (concentrated) → Resin-Na⁺ + CaCl₂/MgCl₂ (waste)

• Selective adsorption of multivalent hardness ions over Na⁺.

• Reversibility of the ion exchange via salt regeneration, enabling continuous use.

• Simplicity and cost-effectiveness of the NaCl regeneration process.
