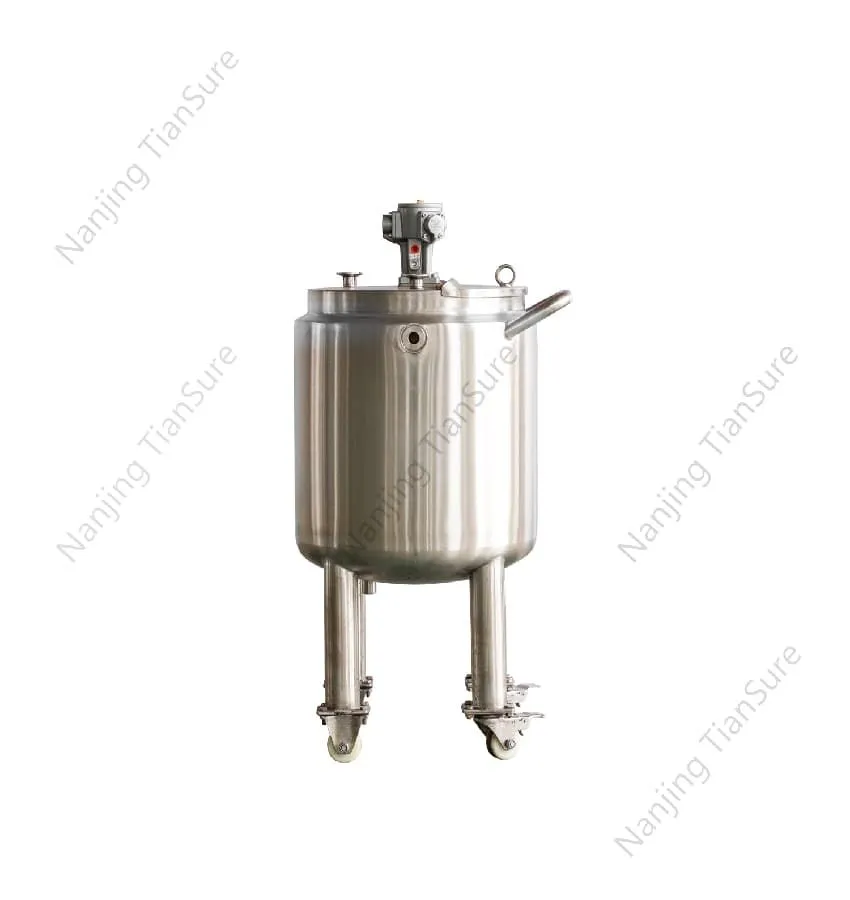

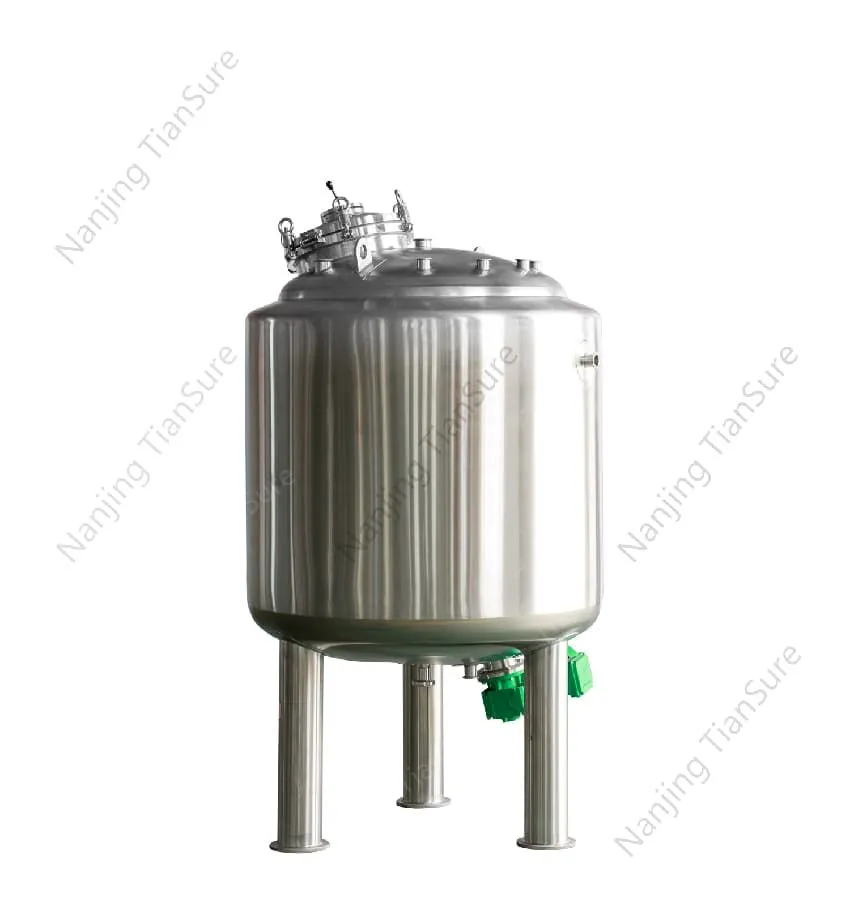

Our concentration and dilution mixing tank is a device used to mix chemical liquids, usually consisting of a liquid storage tank and a stirrer. Its main function is to mix a liquid with a high concentration with water or other solvents in a specific proportion to obtain the required concentration. This equipment is usually used in the manufacture of chemicals, coatings, detergents, fertilizers, pharmaceuticals and other industries, because the production process of these industries requires the use of chemicals of various concentrations. The use of a concentration and dilution mixing tank can make the production process more efficient and precise.
Description
Structure and working principle
The concentrated and diluted liquid mixing tank is mainly composed of a liquid storage tank, an agitator, an inlet pipe, an outlet pipe, a liquid level meter, a flow meter, a pressure gauge, a valve, etc. Among them, the liquid storage tank is usually made of stainless steel or fiberglass, which has good corrosion resistance and sealing. The agitator drives the bearing to rotate through the motor, so that the chemicals inside are fully mixed. The inlet and outlet pipes are used to transport chemicals, the liquid level meter is used to detect the liquid level height, and the flow meter is used to ensure the accuracy of the concentration ratio.
When in use, the concentrated liquid needs to be transported to the liquid storage tank first, and then the mixing ratio and mixing time are set as needed. Once the parameters are set, the agitator will start working and gradually inject water or other solvents into the liquid storage tank. At the same time, the liquid level meter and flow meter will monitor the mixing process to ensure the accuracy of the mixing process.
Advantages and application
Concentrated and diluted liquid mixing tanks have many advantages in the chemical production process:
High efficiency: Using concentrated and diluted liquid mixing tanks can greatly improve the speed and accuracy of chemical mixing.
Accuracy: By controlling parameters such as inlet and outlet pipes and flow meters, the accuracy of chemical mixing ratios can be ensured.
Safety: Concentrated and diluted liquid mixing tanks usually adopt a sealed structure to avoid safety issues such as chemical leakage and evaporation.
Versatility: This equipment can be used in a variety of industries, such as chemical, pharmaceutical, food, environmental protection, etc.
Maintenance
The normal operation of the concentrated and diluted liquid mixing tank requires regular inspection and maintenance. It mainly includes the following aspects:
Check whether the electrical system and mechanical parts are operating normally.
Clean the inside of the storage tank regularly to avoid chemical residue and accumulation.
Replace severely worn parts such as bearings, seals, etc.
Check the accuracy of monitoring equipment such as flow meters, pressure gauges, and liquid level gauges regularly.
Replace filters and pipes in time according to usage to ensure smooth transportation.
In short, the concentrated and diluted liquid mixing tank is a very important chemical production equipment with a wide range of applications and the advantages of high efficiency, precision, and safety. In order to ensure its normal operation and extend its service life, regular maintenance is required.
