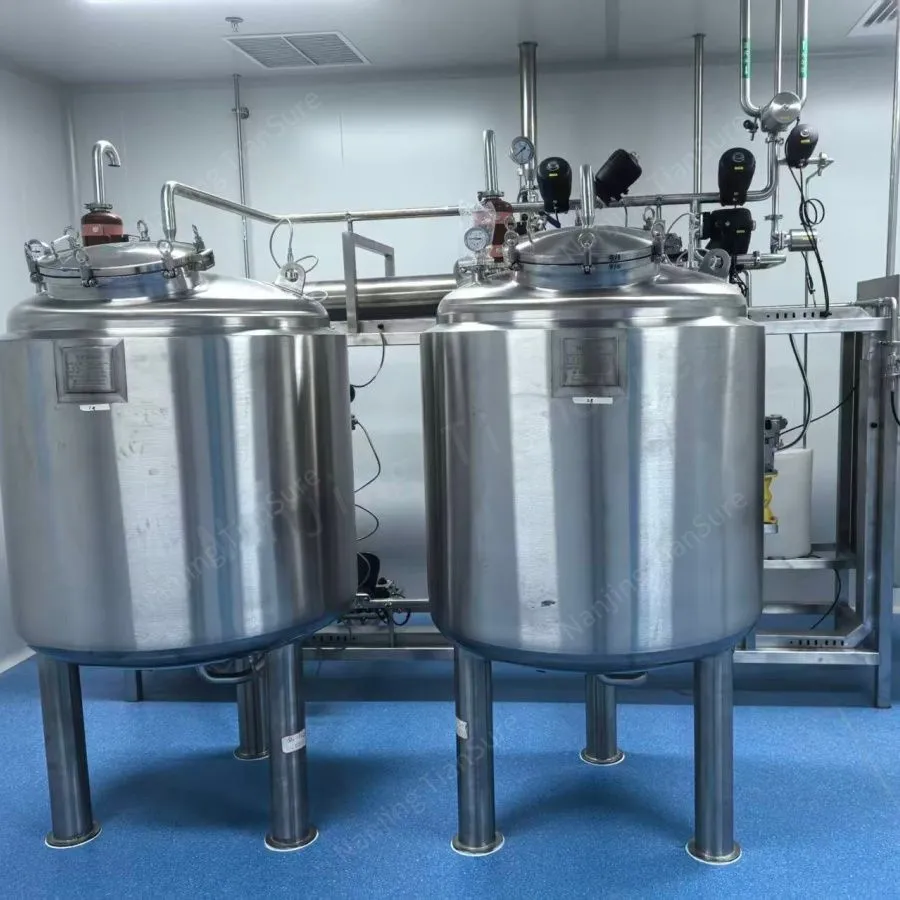

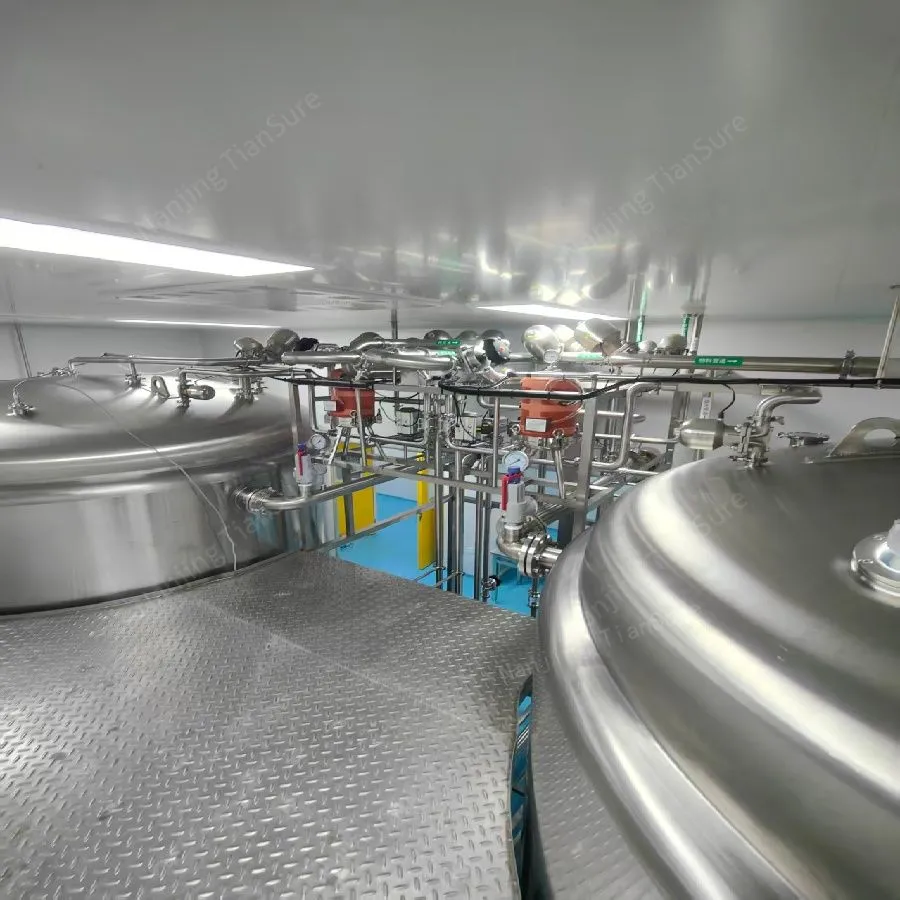

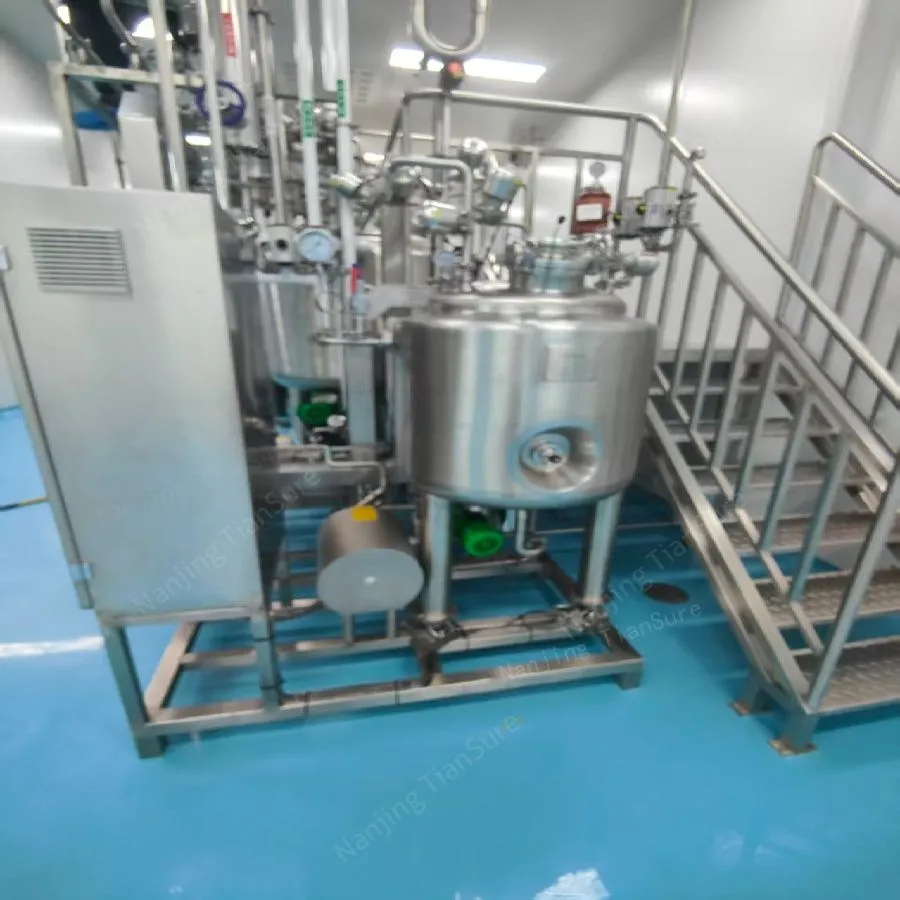

The Automatic Liquid Formulation System from TianSure is engineered for pharmaceutical, biopharmaceutical and healthcare manufacturing processes requiring precise, repeatable and GMP-compliant liquid formulation. By integrating automated dosing, mixing and process control, the system minimizes human intervention and ensures consistent product quality across batches.
Description
Working Principle
Purified water or WFI and raw materials are automatically dosed into the formulation system according to predefined recipes. Controlled agitators ensure uniform mixing, while temperature control, level sensors and flow measurement maintain stable process conditions. The PLC-based control system manages the entire formulation sequence, including material addition, mixing time, heating or cooling and transfer to downstream processes, ensuring accuracy and traceability.
Main Features
• Fully automatic liquid formulation system with PLC + HMI control
• Recipe-based operation for accurate and repeatable formulation
• Integrated dosing, mixing and transfer functions
• 316L stainless steel product-contact parts with sanitary polishing or electropolishing
• Hygienic design suitable for sterile and non-sterile applications
• Optional jacketed tanks for precise temperature control
• Compatible with CIP/SIP systems for validated cleaning and sterilization
• Data recording and alarm functions for GMP compliance
• Complete validation documentation: URS, DQ, IQ, OQ, PQ
Applications
• Pharmaceutical liquid formulation and preparation
• Oral liquid, syrup and suspension production
• Injectable and sterile solution formulation (with CIP/SIP)
• Biopharmaceutical buffers and intermediates
• Cosmetic and healthcare liquid manufacturing
