1. Rapid response to pure steam capacity requirements, greatly shortening sterilization cycle;
2. Accurate pure steam output pressure and temperature control, fluctuation within ±5%;
3. Unattended, suitable for the simultaneous use of multiple sterilization points ;
4. Typical waste discharge rate: 2-8%;
5. Pure steam production pressure output range: 2-5bar;
Description
Introduction
Pure steam is usually made of purified water as raw material, and is produced by a pure steam generator or the first effect evaporator of a multi-effect distilled water machine.
1.The equipment responds quickly to user needs ( less than 30 seconds from standby to full capacity output ), which can greatly shorten the user's sterilization cycle
2.Precise pure steam output control ensures stable pressure output accuracy of +/- 5% , optimizing sterilization performance under the entire process conditions
Fully meet the pure steam pressure output range required for sterilization in pharmaceutical factories (2~5barg)
3. Highly efficient capacity ratio regulation (PCC) fully balances the fluctuations that may be caused by the use of multiple pure steam points.

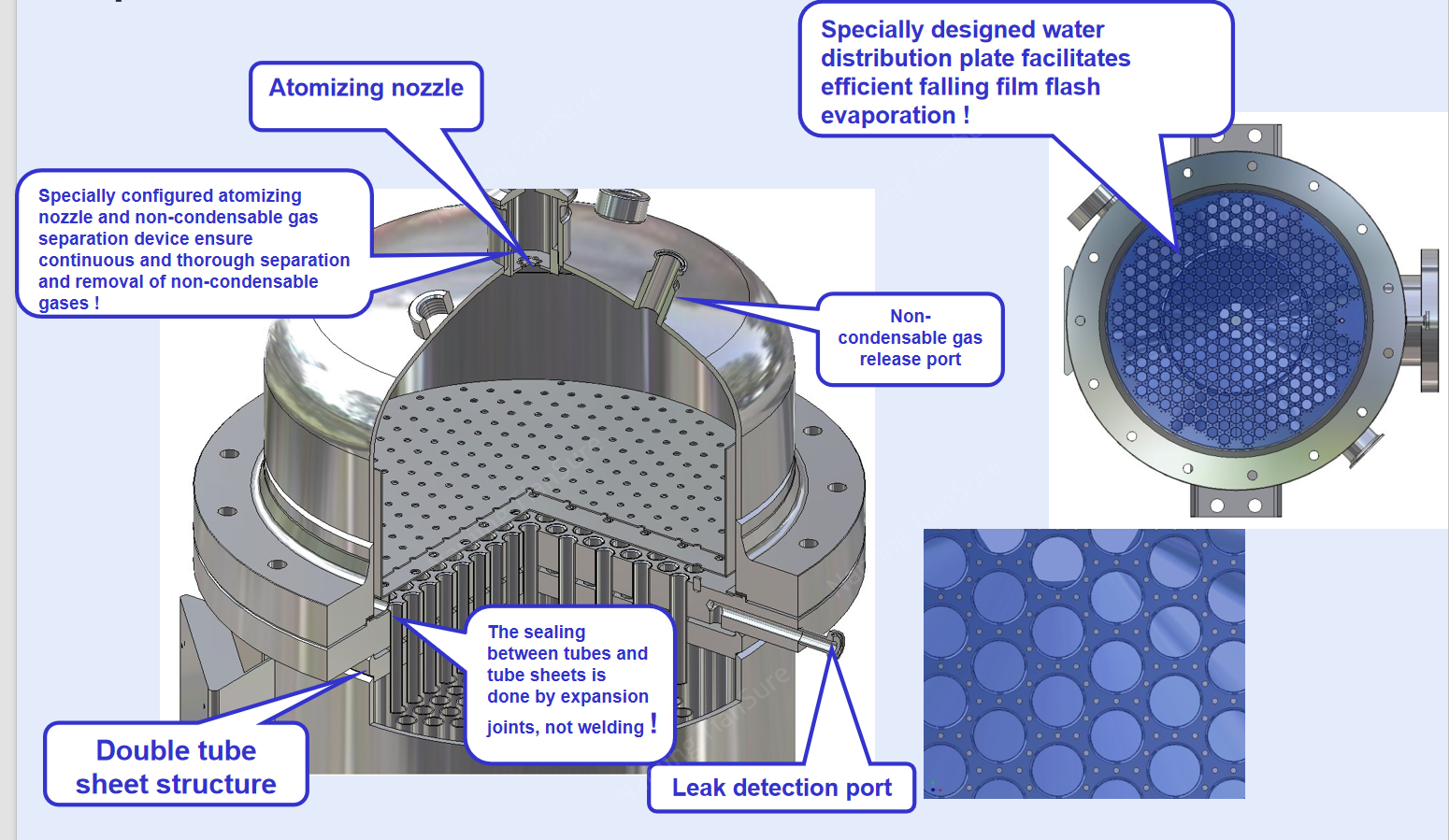

The specially designed impurity separation system and non-condensable gas separation device ensure that the quality of pure steam produced by the equipment meets the requirements of non-condensable gas content (<3.5%<V/V>, saturation (dryness) (>90%), and superheat (<25℃) defined by HTM2010 (EN285).
4.Minimum footprint: Highly integrated equipment process layout and unique column design make the overall size and footprint of the equipment the smallest among similar products
Drawing
