1. Rapid response to pure steam capacity requirements, greatly shortening sterilization cycle;
2. Accurate pure steam output pressure and temperature control, fluctuation within ±5%;
3. Unattended, suitable for the simultaneous use of multiple sterilization points ;
4. Typical waste discharge rate: 2-8%;
5. Pure steam production pressure output range: 2-5bar;
Description
Introduction

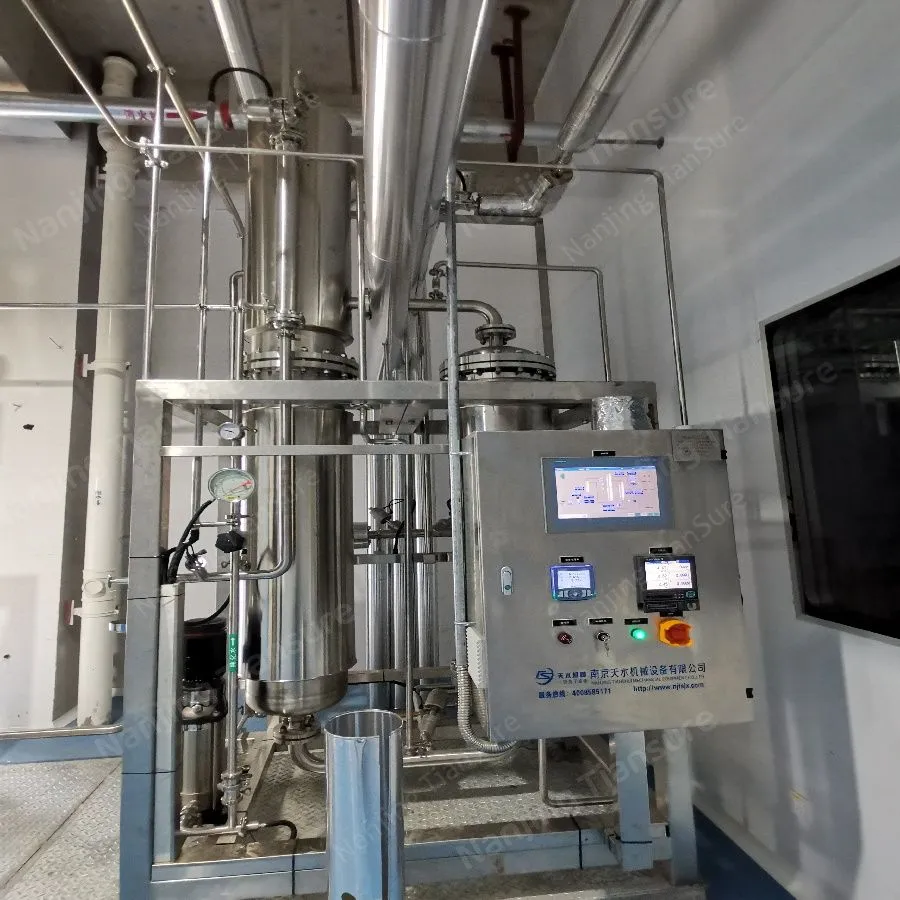

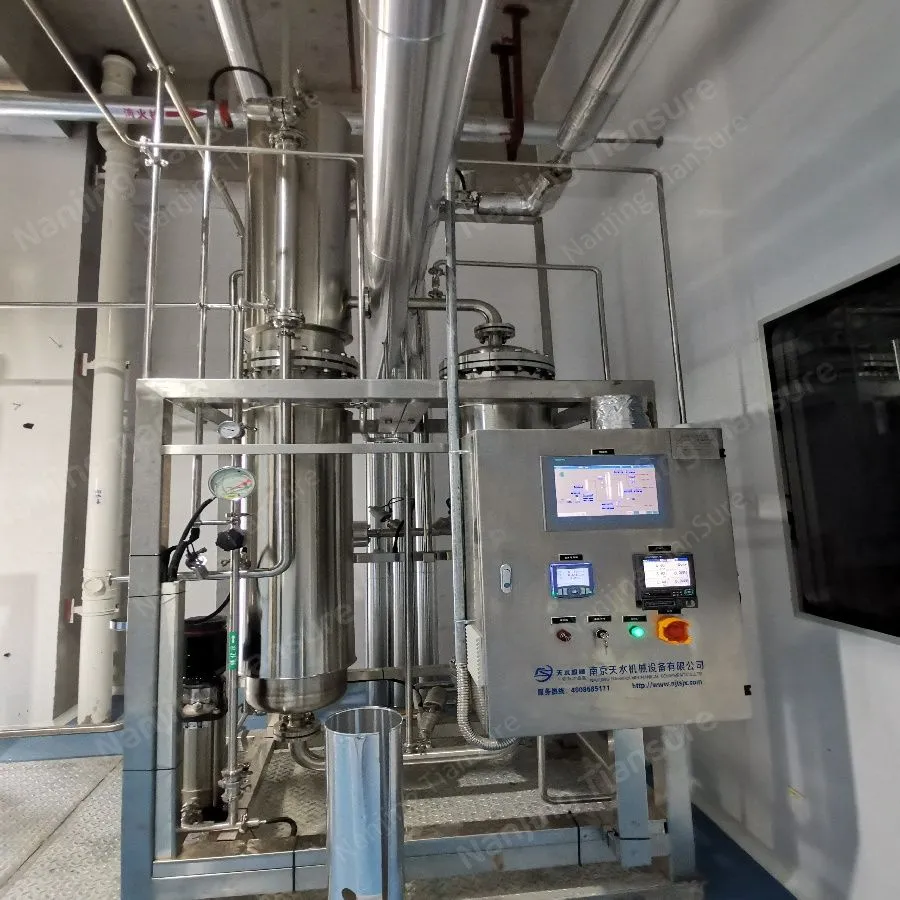

Purified water will generate secondary steam heated by the steam in the boiler in the generator, and the toxin and bacteria in it will be removed, it is also shorten as pure steam.
Pure steam generation is widely applicable for the sterilizing and disinfecting of pipes and storing tank for such industries as pharmaceutical, foods, beverage etc.
Purified water will generate secondary steam heated by the steam in the boiler in the generator, and the toxin and bacteria in it will be removed, the resulting steam is called pure steam for short.
Features
Pure steam generator adopts unique tertiary separation technology(flash, gravity separation by 180 degrees exhumation and health type spiral separation technology), producing pure steam with best quality, as well as safe and reliable.

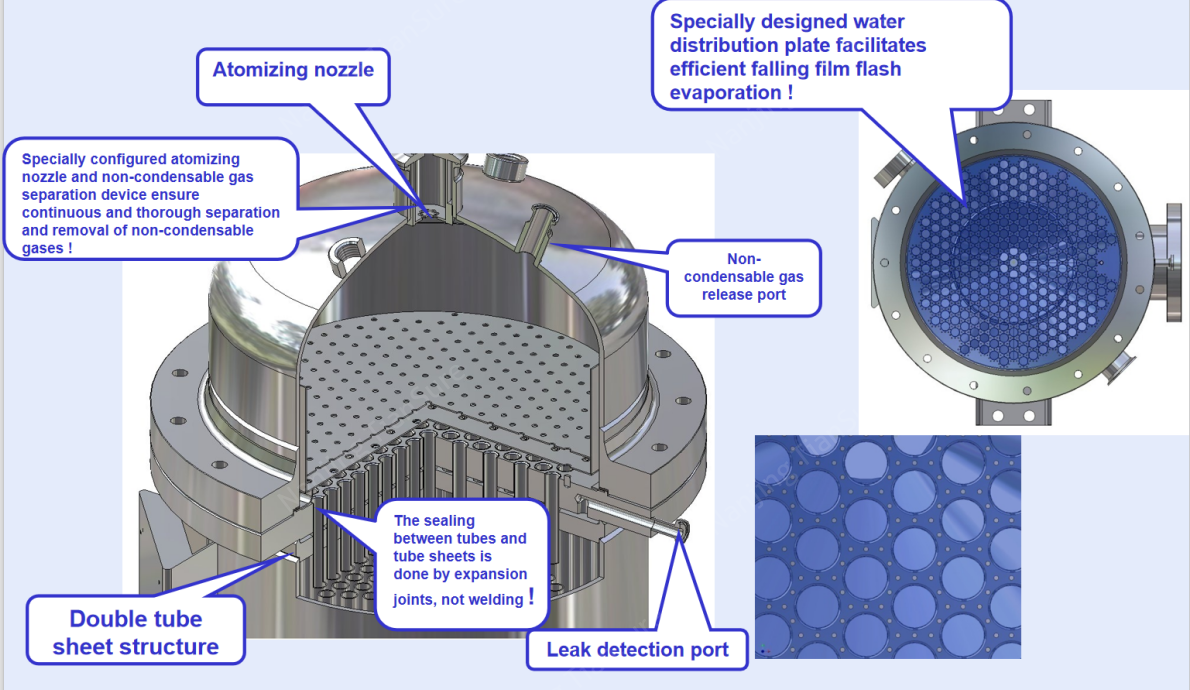

Device for continuous separating non-condensable gas from feed purified water is embedded into system, and impurities are excluded continuously.

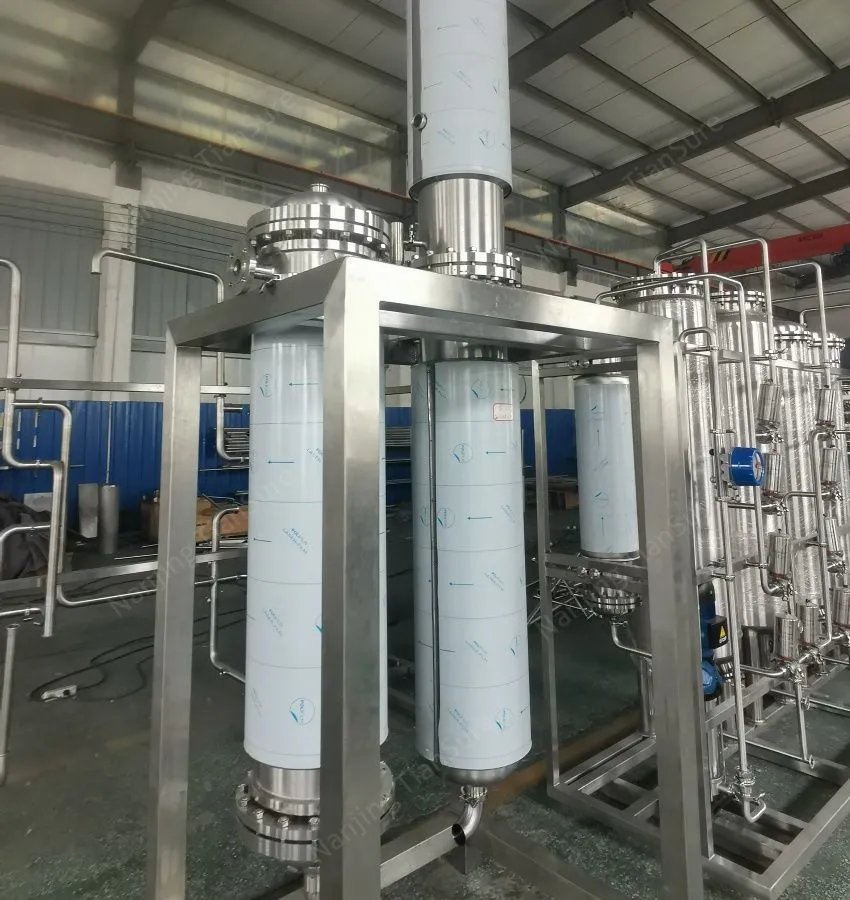

Pre-heaters and evaporating columns adopt double tube plate design, preventing cross contamination to the greatest degree.
Evaporating column is equipped with special feedwater distribution plate, which can guarantee that supply water can form falling film in the column tube, to ensure the highest evaporation heat exchange efficiency.
Equipment design pressure can guarantee stable production with 8 bar industrial steam pressure. During pure steam consumption, discharge automatically adjusts to about 2% to 8% of capacity of equipment.
