sterile steam generator

A Pure Steam Generator utilizes purified water as feed water and industrial steam for heating to produce pure steam. This equipment series serves for sterilizing pharmaceutical equipment and various process production lines, including pipelines and storage tanks. The condensate of the generated pure steam complies with the water for injection specifications of Chinese Pharmacopoeia (Cp2020), U.S. Pharmacopoeia (USP43), and European Pharmacopoeia (EP10).

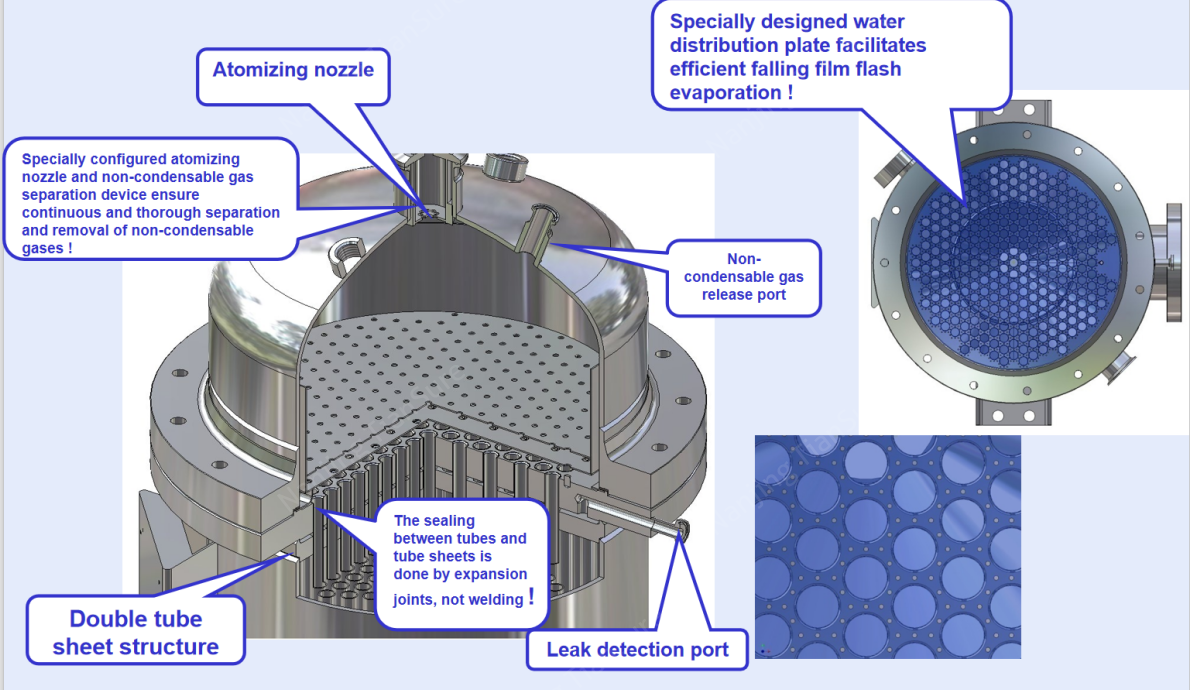

Qualified feed water is pressurized by multi-stage pumps and first enters Condenser 2, where it absorbs waste heat for preheating. It then proceeds to Preheater 2 and Preheater 1. After heat exchange, the water enters the Evaporator, where the feed water dispenser sprays it onto the inner wall of the heating tube, creating a film - like flow. The industrial steam heats and vaporizes this water, generating secondary steam with water droplets. This steam enters the water separation device from the lower end of the Evaporation chamber. Through three - stage separation, it is transformed into pure steam.
